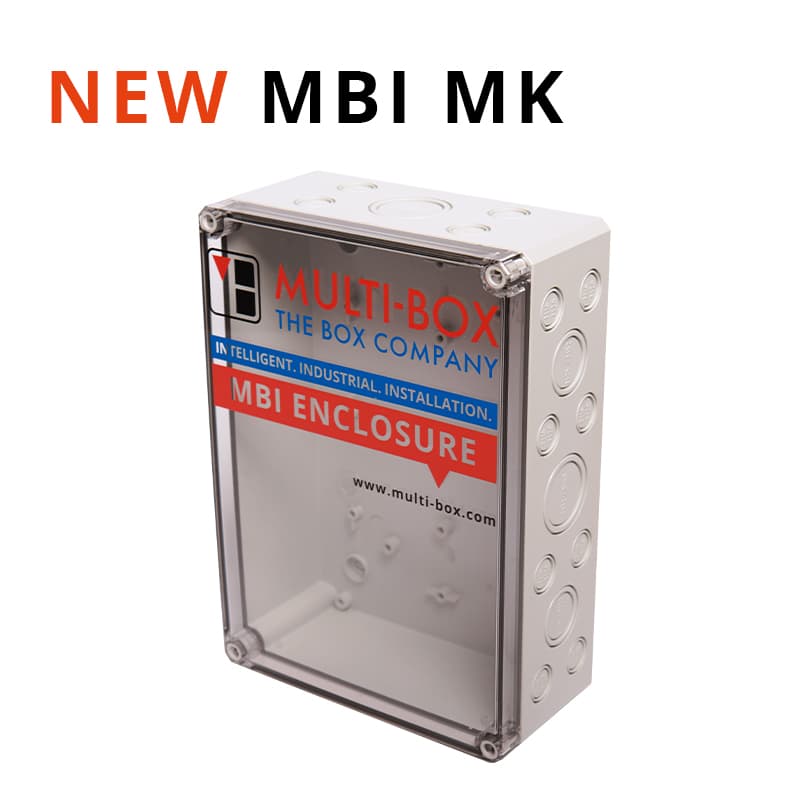

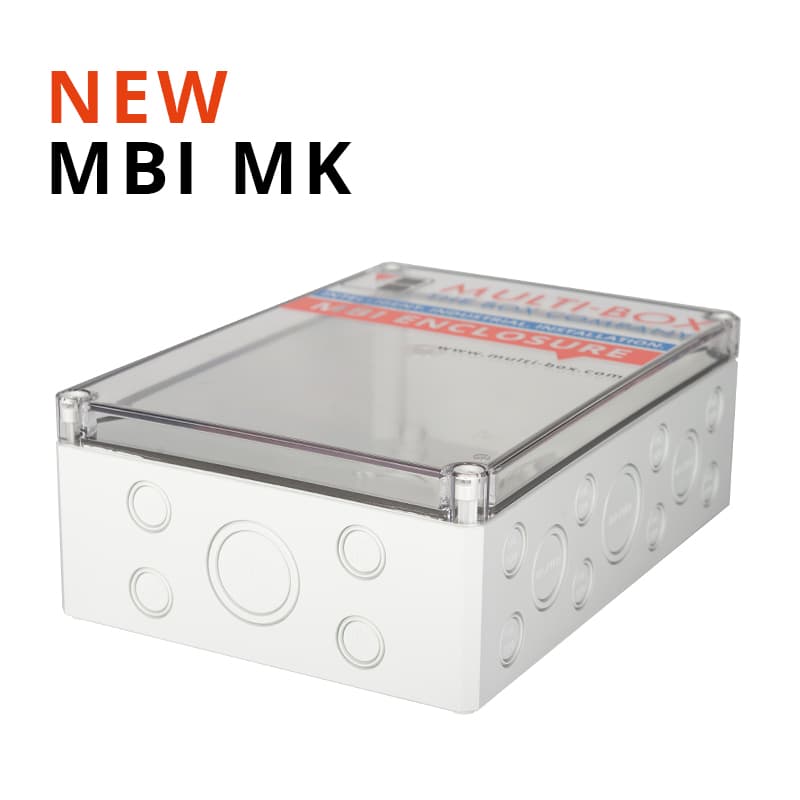

MBI-MK Knockouts / Clear Cover

MBI-MK Knockouts / Clear Cover

polygon

Material Deckel: Polycarbonate

polygon

Material Unterteil: Polycarbonate GF10

polygon

Material Dichtung: Polyurethane

polygon

Material Schrauben: Plastic

polygon

Silikonfrei: Ja

polygon

Halogenfrei: Ja

polygon

UV-Beständig: Ja

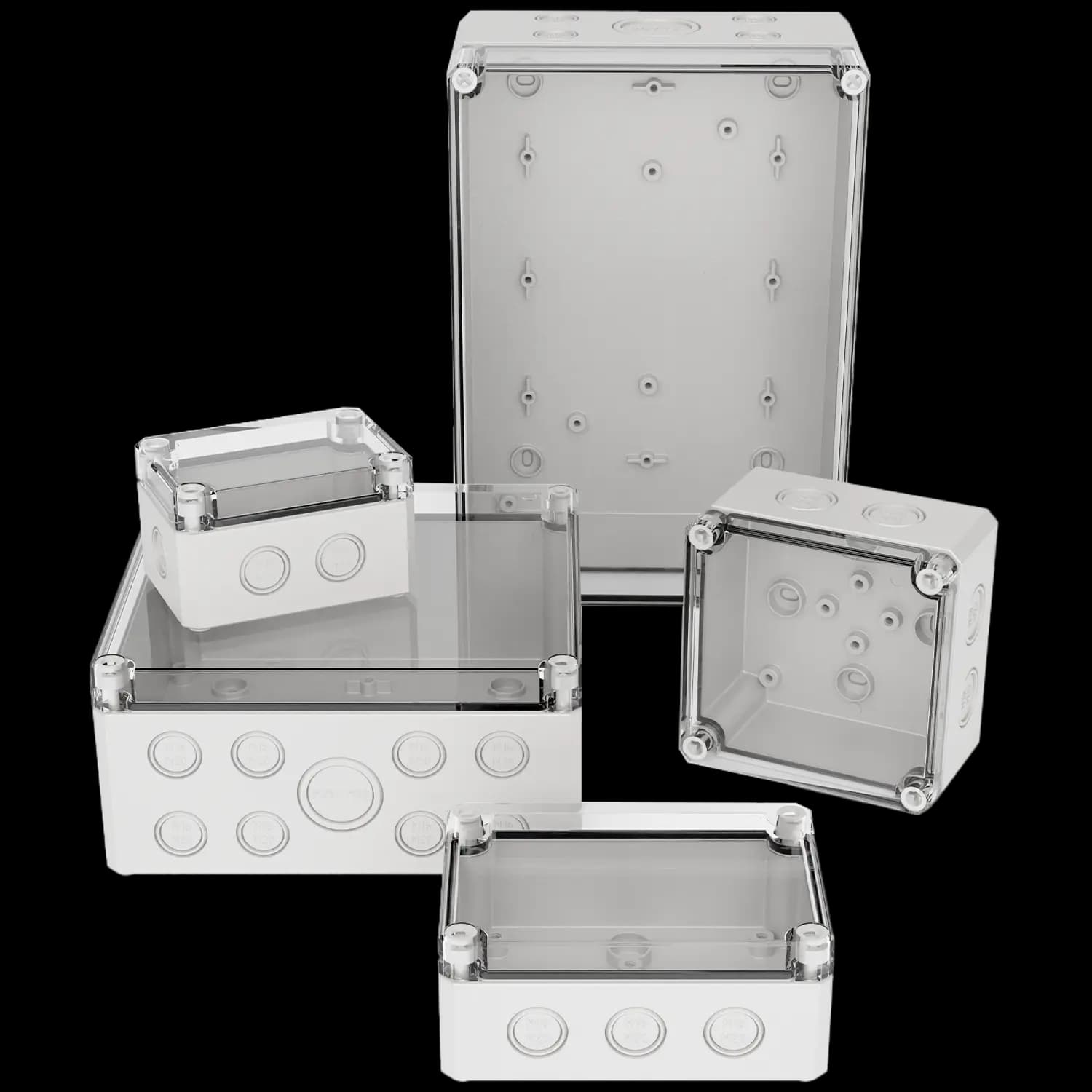

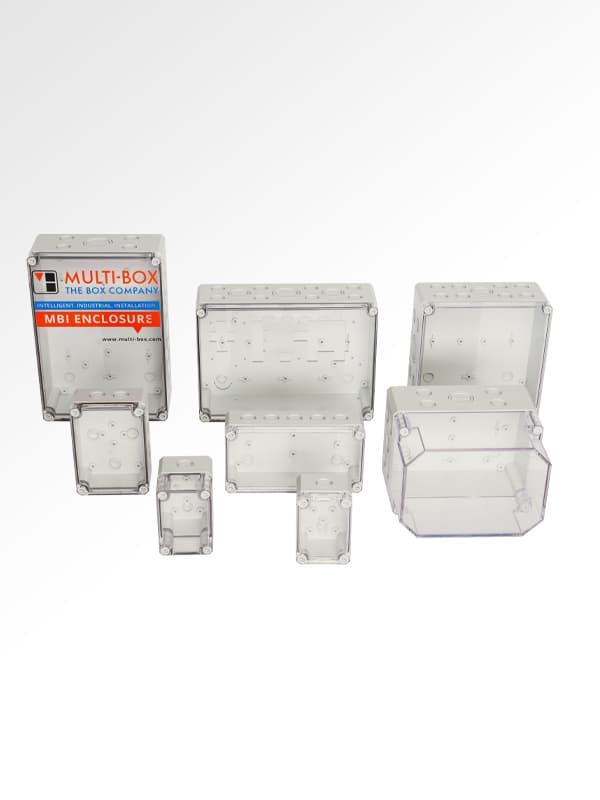

The MBI enclosure series is characterised by a wide range of sizes and a systematic focus on requirements in industrial installations. MBI enclosure bases are designed with metric pre-formed knockouts on all four sides. These can be opened for cable entries. Transparent covers are supplied with this version.

MBI enclosure bases are made of glass fibre reinforced polycarbonate in light grey colour RAL 7035. The material is UV-resistant (UL 746C F1) and self-extinguishing (UL 94 V0). The transparent covers are also made of UV-resistant polycarbonate (UL 746C F1) and comply with the flammability classification UL 94 V2. Depending on quantities, the enclosures can be produced in special colours.

With a seamlessly foamed 2-component polyurethane gasket, all types achieve protection class IP66. The cover screws are made of plastic material and therefore they are completely corrosion-free. The impact resistance of the enclosures corresponds to IK08, making the MBI series ideally suitable for use in industrial and outdoor applications.

MBI enclosures offer a variety of mounting points for direct fixation of components into the base. The self-forming plastic screws for assembly are included in the scope of delivery.

There are several ways to mount the enclosures to walls or machines. With the cover opened, mounting can be done through wall mounting channels outside the sealing area. Alternatively, there are pre-formed knockouts on the enclosure base. With the cover closed, the enclosures can be fastened with external wall brackets. Another option is mounting with M4 screws from the rear side into pressed-in thread bushes in the bottom of the enclosure.

Depending on quantities, we can produce customer-specific mould sides. Individual knockouts, cutouts and hole designs can be implemented in the injection mould and there is no requirement for further mechanical processing.

Artikel-Nr.
Typ
Länge
Breite
Höhe
PDF
DXF
3D

65 mm

65 mm

57 mm

pdf document image with link
dxf document image with link
3d document image with link

65 mm

65 mm

81 mm

pdf document image with link
dxf document image with link
3d document image with link

94 mm

65 mm

57 mm

pdf document image with link
dxf document image with link
3d document image with link

94 mm

65 mm

81 mm

pdf document image with link
dxf document image with link
3d document image with link

94 mm

94 mm

57 mm

pdf document image with link
dxf document image with link
3d document image with link

94 mm

94 mm

81 mm

pdf document image with link
dxf document image with link
3d document image with link

130 mm

94 mm

57 mm

pdf document image with link
dxf document image with link
3d document image with link

130 mm

94 mm

81 mm

pdf document image with link
dxf document image with link
3d document image with link

180 mm

94 mm

57 mm

pdf document image with link
dxf document image with link
3d document image with link

180 mm

94 mm

81 mm

pdf document image with link
dxf document image with link
3d document image with link

110 mm

110 mm

66 mm

pdf document image with link
dxf document image with link
3d document image with link

110 mm

110 mm

90 mm

pdf document image with link
dxf document image with link
3d document image with link

180 mm

110 mm

63 mm

pdf document image with link
dxf document image with link
3d document image with link

180 mm

110 mm

84 mm

pdf document image with link
dxf document image with link
3d document image with link

180 mm

110 mm

90 mm

pdf document image with link
dxf document image with link
3d document image with link

180 mm

110 mm

111 mm

pdf document image with link
dxf document image with link
3d document image with link

180 mm

110 mm

137 mm

pdf document image with link
dxf document image with link
3d document image with link

180 mm

110 mm

165 mm

pdf document image with link
dxf document image with link
3d document image with link

130 mm

130 mm

75 mm

pdf document image with link
dxf document image with link
3d document image with link

130 mm

130 mm

99 mm

pdf document image with link
dxf document image with link
3d document image with link

180 mm

130 mm

63 mm

pdf document image with link
dxf document image with link
3d document image with link

180 mm

130 mm

84 mm

pdf document image with link
dxf document image with link
3d document image with link

180 mm

130 mm

90 mm

pdf document image with link
dxf document image with link
3d document image with link

180 mm

130 mm

111 mm

pdf document image with link
dxf document image with link
3d document image with link

180 mm

130 mm

137 mm

pdf document image with link
dxf document image with link
3d document image with link

180 mm

130 mm

165 mm

pdf document image with link
dxf document image with link
3d document image with link

182 mm

180 mm

63 mm

pdf document image with link
dxf document image with link
3d document image with link

182 mm

180 mm

84 mm

pdf document image with link
dxf document image with link
3d document image with link

182 mm

180 mm

90 mm

pdf document image with link
dxf document image with link
3d document image with link

182 mm

180 mm

111 mm

pdf document image with link
dxf document image with link
3d document image with link

182 mm

180 mm

137 mm

pdf document image with link
dxf document image with link
3d document image with link

182 mm

180 mm

165 mm

pdf document image with link
dxf document image with link
3d document image with link

254 mm

180 mm

63 mm

pdf document image with link
dxf document image with link
3d document image with link

254 mm

180 mm

84 mm

pdf document image with link
dxf document image with link
3d document image with link

254 mm

180 mm

90 mm

pdf document image with link
dxf document image with link
3d document image with link

254 mm

180 mm

111 mm

pdf document image with link
dxf document image with link
3d document image with link

254 mm

180 mm

137 mm

pdf document image with link
dxf document image with link
3d document image with link

254 mm

180 mm

165 mm

pdf document image with link
dxf document image with link
3d document image with link

300 mm

200 mm

130 mm

pdf document image with link
dxf document image with link
3d document image with link

300 mm

200 mm

185 mm

pdf document image with link
dxf document image with link
3d document image with link

361 mm

254 mm

111 mm

pdf document image with link
dxf document image with link
3d document image with link

361 mm

254 mm

165 mm

pdf document image with link
dxf document image with link
3d document image with link

400 mm

300 mm

130 mm

pdf document image with link
dxf document image with link
3d document image with link

400 mm

300 mm

185 mm

pdf document image with link
dxf document image with link
3d document image with link
Artikel-Nr.
Typ
Länge
Breite
Höhe
PDF
DXF
3D

65 mm

65 mm

57 mm

pdf document image with link
dxf document image with link
3d document image with link

65 mm

65 mm

81 mm

pdf document image with link
dxf document image with link
3d document image with link

94 mm

65 mm

57 mm

pdf document image with link
dxf document image with link
3d document image with link

94 mm

65 mm

81 mm

pdf document image with link
dxf document image with link
3d document image with link

94 mm

94 mm

57 mm

pdf document image with link
dxf document image with link
3d document image with link

94 mm

94 mm

81 mm

pdf document image with link
dxf document image with link
3d document image with link

130 mm

94 mm

57 mm

pdf document image with link
dxf document image with link
3d document image with link

130 mm

94 mm

81 mm

pdf document image with link
dxf document image with link
3d document image with link

180 mm

94 mm

57 mm

pdf document image with link
dxf document image with link
3d document image with link

180 mm

94 mm

81 mm

pdf document image with link
dxf document image with link
3d document image with link

110 mm

110 mm

66 mm

pdf document image with link
dxf document image with link
3d document image with link

110 mm

110 mm

90 mm

pdf document image with link
dxf document image with link
3d document image with link

180 mm

110 mm

63 mm

pdf document image with link
dxf document image with link
3d document image with link

180 mm

110 mm

84 mm

pdf document image with link
dxf document image with link
3d document image with link

180 mm

110 mm

90 mm

pdf document image with link
dxf document image with link
3d document image with link

180 mm

110 mm

111 mm

pdf document image with link
dxf document image with link
3d document image with link

180 mm

110 mm

137 mm

pdf document image with link
dxf document image with link
3d document image with link

180 mm

110 mm

165 mm

pdf document image with link
dxf document image with link
3d document image with link

130 mm

130 mm

75 mm

pdf document image with link
dxf document image with link
3d document image with link

130 mm

130 mm

99 mm

pdf document image with link
dxf document image with link
3d document image with link

180 mm

130 mm

63 mm

pdf document image with link
dxf document image with link
3d document image with link

180 mm

130 mm

84 mm

pdf document image with link
dxf document image with link
3d document image with link

180 mm

130 mm

90 mm

pdf document image with link
dxf document image with link
3d document image with link

180 mm

130 mm

111 mm

pdf document image with link
dxf document image with link
3d document image with link

180 mm

130 mm

137 mm

pdf document image with link
dxf document image with link
3d document image with link

180 mm

130 mm

165 mm

pdf document image with link
dxf document image with link
3d document image with link

182 mm

180 mm

63 mm

pdf document image with link
dxf document image with link
3d document image with link

182 mm

180 mm

84 mm

pdf document image with link
dxf document image with link
3d document image with link

182 mm

180 mm

90 mm

pdf document image with link
dxf document image with link
3d document image with link

182 mm

180 mm

111 mm

pdf document image with link
dxf document image with link
3d document image with link

182 mm

180 mm

137 mm

pdf document image with link
dxf document image with link
3d document image with link

182 mm

180 mm

165 mm

pdf document image with link
dxf document image with link
3d document image with link

254 mm

180 mm

63 mm

pdf document image with link
dxf document image with link
3d document image with link

254 mm

180 mm

84 mm

pdf document image with link
dxf document image with link
3d document image with link

254 mm

180 mm

90 mm

pdf document image with link
dxf document image with link
3d document image with link

254 mm

180 mm

111 mm

pdf document image with link
dxf document image with link
3d document image with link

254 mm

180 mm

137 mm

pdf document image with link
dxf document image with link
3d document image with link

254 mm

180 mm

165 mm

pdf document image with link
dxf document image with link
3d document image with link

300 mm

200 mm

130 mm

pdf document image with link
dxf document image with link
3d document image with link

300 mm

200 mm

185 mm

pdf document image with link
dxf document image with link
3d document image with link

361 mm

254 mm

111 mm

pdf document image with link
dxf document image with link
3d document image with link

361 mm

254 mm

165 mm

pdf document image with link
dxf document image with link
3d document image with link

400 mm

300 mm

130 mm

pdf document image with link
dxf document image with link
3d document image with link

400 mm

300 mm

185 mm

pdf document image with link
dxf document image with link
3d document image with link

Serviceleistungen

Mit unserem umfangreichen Maschinenpark und einem hoch motivierten Team verwandeln wir unsere Standardprodukte in Ihre individuelle Gehäuselösung.

Multi-Box Polygon

NEWSLETTER

Mit dem MULTI-BOX Newsletter informieren wir Sie regelmäßig über Produktneuheiten und technische Innovationen.

ANFAHRT

multi-box-location

MULTI-BOX GmbH
Wallücker Bahndamm 7
32278 Kirchlengern

© 2025 MULTI-BOX GmbH All rights reserved
