Polycarbonate-Enclosures MBM / Grey Cover | MULTI-BOX GmbH

Start

Products

Polycarbonate-Enclosures MBM / Grey Cover

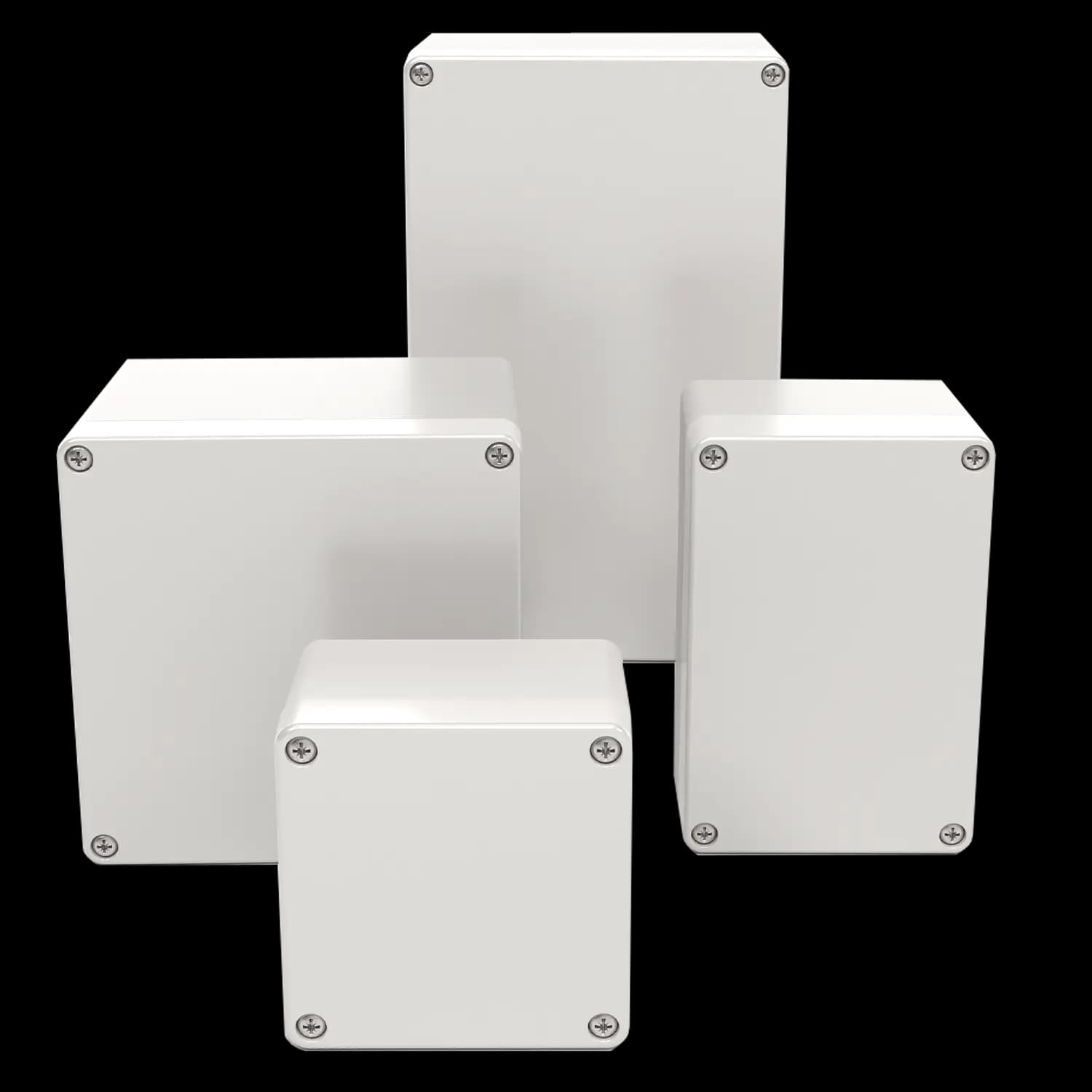

Polycarbonate-Enclosures MBM / Grey Cover

Material cover: Polycarbonate

Material base: Polycarbonate

Material sealing: Polyurethane

Material screws: Stainless Steel V2 A

Silicone-free: Yes

Halogen-free: Yes

UV-resistant: Yes

MBM Enclosures offer excellent properties for the installation of electronic and electrical components as well as complete control systems.

Thanks to the high UV-resistance of the material, these enclosures can be used in both indoor and outdoor areas.

The MBM Enclosures are mechanically processed in a number of ways providing almost no limits with customised surface design, including silk screen printing and membrane keyboards.

The enclosures are available with a grey or transparent cover (K).


0301100100	MBM 050504	52 mm	50 mm	35 mm
0301100200	MBM 060504	65 mm	50 mm	35 mm
0301100400	MBM 060505	65 mm	50 mm	45 mm
0301100500	MBM 060545	65 mm	50 mm	45 mm
0301100600	MBM 060555	65 mm	50 mm	55 mm
0301100700	MBM 060603	58 mm	64 mm	37 mm
0301100800	MBM 090603	98 mm	64 mm	37 mm
0301101000	MBM 080805	82 mm	80 mm	55 mm
0301101200	MBM 080807	82 mm	80 mm	65 mm
0301101300	MBM 080809	82 mm	80 mm	85 mm
0301101400	MBM 080810	82 mm	80 mm	95 mm
0301101500	MBM 128035	120 mm	80 mm	36 mm
0301101600	MBM 128040	120 mm	80 mm	41 mm
0301101700	MBM 128045	120 mm	80 mm	47 mm
0301101900	MBM 128050	120 mm	80 mm	50 mm
0301102100	MBM 128055	120 mm	80 mm	55 mm
0301102300	MBM 128060	120 mm	80 mm	60 mm
0301102330	MBM 128060	120 mm	80 mm	60 mm
0301102340	MBM 128065	120 mm	80 mm	65 mm
0301102500	MBM 128070	120 mm	80 mm	70 mm
0301102550	MBM 128070	120 mm	80 mm	70 mm
0301102700	MBM 128080	120 mm	80 mm	80 mm
0301102750	MBM 128080	120 mm	80 mm	80 mm
0301102900	MBM 128085	120 mm	80 mm	85 mm
0301103100	MBM 128090	120 mm	80 mm	90 mm
0301103300	MBM 128010	120 mm	80 mm	100 mm
0301103610	MBM 168035	160 mm	80 mm	37 mm
0301103500	MBM 168055	160 mm	80 mm	55 mm
0301103700	MBM 168060	160 mm	80 mm	60 mm
0301103800	MBM 168085	160 mm	80 mm	85 mm
0301103900	MBM 168090	160 mm	80 mm	90 mm
0301104000	MBM 208055	200 mm	80 mm	55 mm
0301109700	MBM 208011	200 mm	80 mm	110 mm
0301107510	MBM 248055	240 mm	80 mm	55 mm
0301104200	MBM 121255	122 mm	120 mm	55 mm
0301104400	MBM 121275	122 mm	120 mm	75 mm
0301104600	MBM 121285	122 mm	120 mm	85 mm
0301104800	MBM 121211	122 mm	120 mm	105 mm
0301104900	MBM 161255	160 mm	120 mm	55 mm
0301105000	MBM 161270	160 mm	120 mm	70 mm
0301105100	MBM 161275	160 mm	120 mm	75 mm
0301105200	MBM 161290	160 mm	120 mm	90 mm
0301105300	MBM 161212	160 mm	120 mm	120 mm
0301105400	MBM 161214	160 mm	120 mm	140 mm
0301105600	MBM 201255	200 mm	120 mm	55 mm
0301105700	MBM 201270	200 mm	120 mm	70 mm
0301105900	MBM 201275	200 mm	120 mm	75 mm
0301106100	MBM 201290	200 mm	120 mm	90 mm
0301106900	MBM 241270	240 mm	120 mm	70 mm
0301106800	MBM 241210	240 mm	120 mm	100 mm
0301106200	MBM 201555	200 mm	150 mm	55 mm
0301106300	MBM 201575	200 mm	150 mm	75 mm
0301106400	MBM 201580	200 mm	150 mm	80 mm
0301106500	MBM 201510	200 mm	150 mm	100 mm
0301106600	MBM 201511	200 mm	150 mm	105 mm
0301106700	MBM 201513	200 mm	150 mm	125 mm
0301108200	MBM 341555	340 mm	150 mm	55 mm
0301108300	MBM 341580	340 mm	150 mm	75 mm
0301108500	MBM 341510	340 mm	150 mm	100 mm
0301108600	MBM 341512	340 mm	150 mm	120 mm
0301105500	MBM 161665	160 mm	160 mm	65 mm
0301107030	MBM 241670	240 mm	160 mm	70 mm
0301107000	MBM 241690	240 mm	160 mm	90 mm
0301107100	MBM 241612	240 mm	160 mm	120 mm
0301107200	MBM 251655	250 mm	160 mm	55 mm
0301107300	MBM 251685	250 mm	160 mm	85 mm
0301107400	MBM 251690	250 mm	160 mm	90 mm
0301107500	MBM 251611	250 mm	160 mm	115 mm
0301107600	MBM 251612	250 mm	160 mm	120 mm
0301107700	MBM 251615	250 mm	160 mm	150 mm
0301108700	MBM 362015	360 mm	200 mm	150 mm
0301107800	MBM 302365	300 mm	230 mm	65 mm
0301107900	MBM 302385	300 mm	230 mm	85 mm
0301108000	MBM 302311	300 mm	230 mm	110 mm
